# Icon (fw-icon)

fw-icon/FwIcon is a renderer of SVG file that displays an icon-sized image that imparts meaning to the HTML component it is associated with. Following features are available as part of the implementation of the fw-icon.

  1. Enable fw-icon as an optimized renderer for SVG with built-in functions such as Intersection-Observer and Fetch-API Memoization. Go through the docs to understand the various props it supports.
  2. Providing icon-support for crayons-system components and also exposing crayons-icon set/tooling for public use.
  3. Icons can convey all sorts of semantic meaningful information rather than just being decorational. In order to keep icons on theaccessibility tree, just pass the label props and fw-icon does the a11y attribute mapping.
  4. Enable Crayons-Icon as an iconlib to support external icon libraries. You can register/unregister external icon libraries and also apply mutation to all/selected icons. See usage docs.

# Examples Live

Show Code

# Usage in Code

# Intersection Observer

Use prop lazy to enable Intersection-Observer. By default it is disabled. You may choose to give the intersection root-margin for icons i.e via prop x-root-margin as preloading threshold.Default value is 50px.

# Crayons Icon Assets

The following icons are presently part of the Crayons-Icon library. These are optimized using SVGO. Use the name of an icon as listed below it. In case you are planning to use svg+xml source for crayons icons, do remember to import icons from @freshworks/crayons-icon and substitute an underscore for any hyphen in icon name. You may click the image to copy the import. See usage in section Icon Library. e.g. import { add_contact, alert, add_remove, ... } from '@freshworks/crayons-icon'; where name of icon is add-contact,alert and add-remove.

# FwIcon as a Renderer for external lib icons.

fw-icon/FwIcon can also render external icons. You can use any external libraries from cdn after registering them. If you don't pass library props, it will default to crayons. You can even pass the CDN URL of SVG to src prop. See the example below on how to use in React App.

The library registration happens via a resolver function. If you wish to apply some mutation to the icons , you may choose to pass the mutator function.

# Usage in HTML/React Page

# Icon Library (@freshworks/crayons-icon) (opens new window)

Freshworks Crayons publishes @freshworks/crayons-icon as an Icon Library. Following features are made available to users via the Lib utils.

  1. Optimized set of Crayons Icons in dist/icons path. You are free to use them for project related purposes.
  2. Crayons SVG Icons are also available as an esm module. Supports Tree-Shaking. This is a useful feature especially for customization purposes.
  3. Enables @freshworks/crayons-icon CLI Interface via which you can leverage the SVGO Tooling to optimize your project svg-icons.
  4. Crayons Iconlib default svgo config (svg compression util) is available as part of dist folder. Refer usage docs on how to use it in your project.

Some implementations via Icon Lib are as below:-

# Importing Icons from '@freshworks/crayons-icon'. [ Supports Tree-Shaking ].

You can also import Crayons Icons as an esm module. In case you wish to use your own svg+xml source, please pass the source string to data-svg props. See the code below for implementation.

# Usage in HTML/React Page

# Example: Rendered in Sample Page as Component

crayons-icon|header
crayons-icon|add-contact
custom|circle-svg

# CLI Tool for processing SVGs

@freshworks/crayons-icon is also available as a CLI Tool for processing SVGs with a friendlier interface, options and easily customizable config to optimize your SVGs. See the usage below. It comes packed with a ultra tuned svgo-config. We support YML Config convention as its better in readability and easy to modify than a JSON. You may use the in-built CLI command to get the default YML File at your command root/ desired location, which you can further customize and use to optimze your SVGs via this CLI Tool.

See the usage below :-

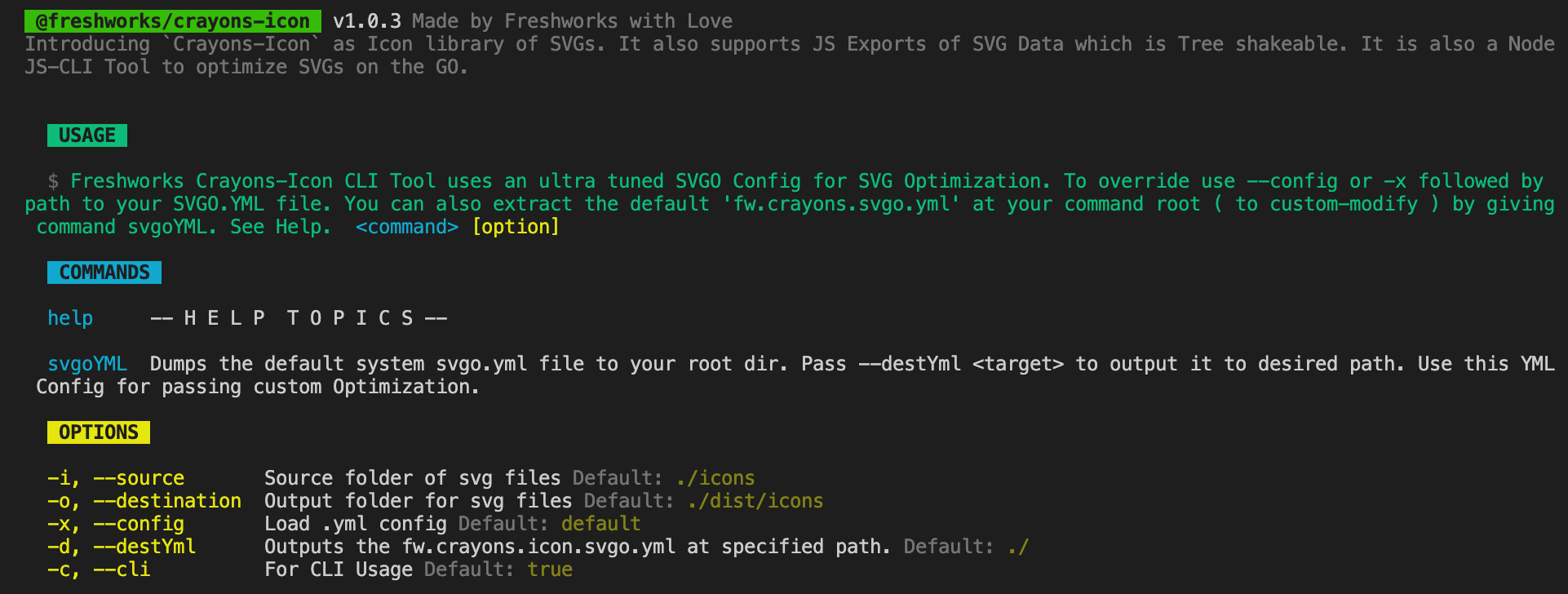

This command list the HELP TOPICS

hello-world-app % fw-icon-cli help

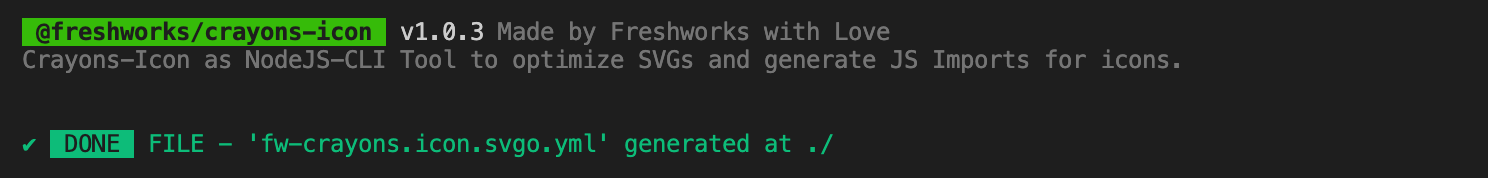

This command COPIES the YML file to the command root. You may pass the dest also.

hello-world-app % fw-icon-cli svgoYML

This command optimizes your SVGs. See the shorter version below.

hello-world-app % fw-icon-cli svgo --source ./src/assets/icons --destination ./public/assets/icons

hello-world-app % fw-icon-cli svgo -i ./src/assets/icons -o ./public/assets/icons

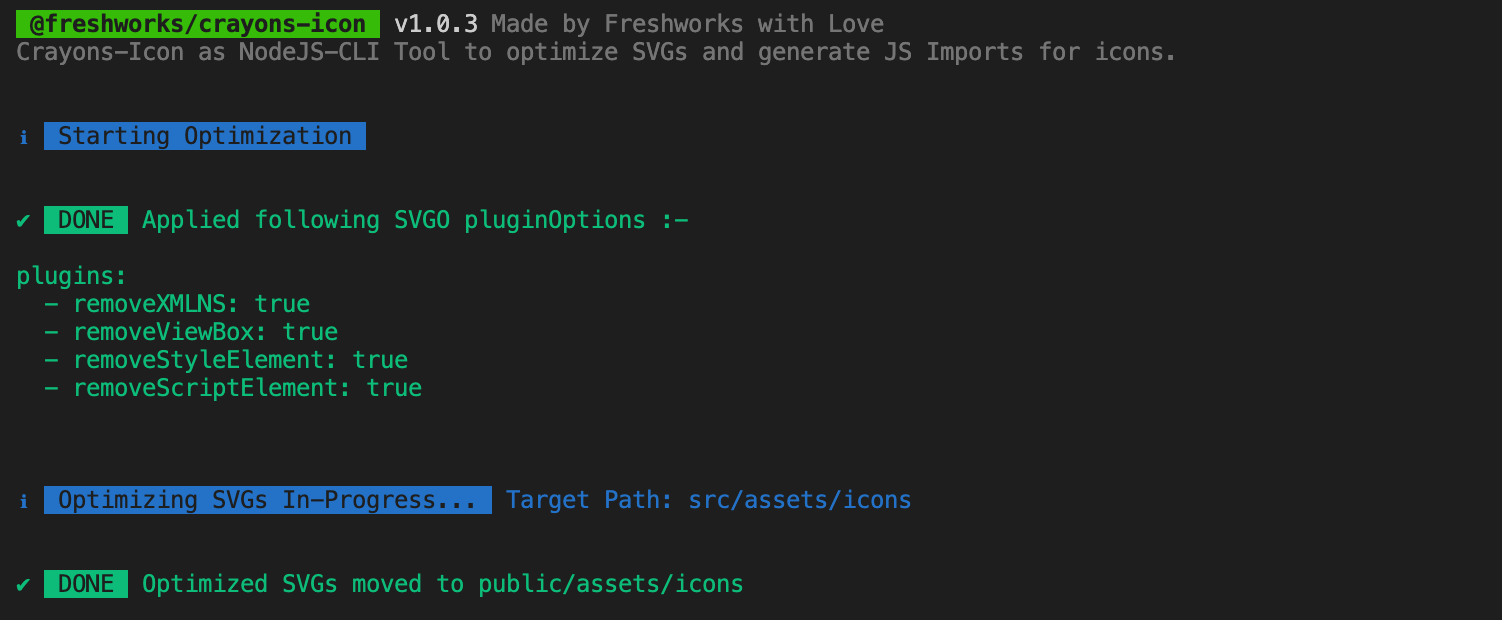

This command optimizes your SVGs using your custom YML File.

hello-world-app % fw-icon-cli svgo --config ./svgo.yml -i ./src/assets/icons -o ./public/assets/icons

# Properties

Property Attribute Description Type Default
color color Color in which the icon is displayed, specified as a standard CSS color or as a HEX code. string ''
dataSvg data-svg Identifier of the icon. The attribute’s value must be a valid JS Import Name of the svg in the named export from @freshworks/crayons-icon. string ''
height height Height of the icon, specified in number of pixels. number undefined
label label An alternate description to use for accessibility. If omitted, the icon will be ignored by assistive devices. string undefined
lazy lazy Enable Intersection Observer. Default is false. boolean false
library library Name of External Library to be used string 'crayons'
name name Identifier of the icon. The attribute’s value must be a valid svg Name in the Crayons-Icon set. string undefined
size size Size of the icon, specified in number of pixels. This will be square coordinates of (w X h) = size X size number undefined
src src Identifier of the icon. The attribute’s value must be a valid path to svg file. string undefined
url url Identifier of the icon. The attribute’s value must be a valid url of the svg icon. string ''
width width Width of the icon, specified in number of pixels. number undefined
xRootMargin x-root-margin Root Margin in px or percentage for Intersection-Observer. This means from ref to bottom of loaded view , the item loads when it crosses above the negative y margin. string '50px'

# CSS Custom Properties

Name Description
--fw-icon-color Color of the icon
--fw-icon-size Size of the icon

# Dependencies

# Used by

# Graph

graph TD;
  fw-accordion-title --> fw-icon
  fw-button --> fw-icon
  fw-checkbox --> fw-icon
  fw-custom-cell-icon --> fw-icon
  fw-data-table --> fw-icon
  fw-datepicker --> fw-icon
  fw-drag-item --> fw-icon
  fw-file-2 --> fw-icon
  fw-file-uploader-file --> fw-icon
  fw-file-uploader-progress --> fw-icon
  fw-inline-message --> fw-icon
  fw-input --> fw-icon
  fw-kebab-menu --> fw-icon
  fw-menu-item --> fw-icon
  fw-modal --> fw-icon
  fw-modal-title --> fw-icon
  fw-pagination --> fw-icon
  fw-select --> fw-icon
  fw-select-option --> fw-icon
  fw-tag --> fw-icon
  fw-toast-message --> fw-icon
  fw-toggle --> fw-icon
  fw-toggle-group-button --> fw-icon
  style fw-icon fill:#f9f,stroke:#333,stroke-width:4px
